Vacuum Conveyor　VS

Feature

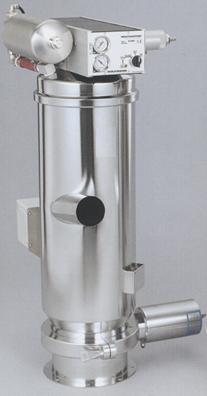

Vacuum Conveyor  VS

The high-density suction pneumatic conveyor equipped with the Multi-Jecter as the air source. Due to the built-in solid-gas separation filter, no need to equip with any other ancillaries separately, such as cyclone, bug filter, etc.

  1. The air source is the low air consuming Multi-Jecter.
  2. The utility requirement is the air only and no electricity is needed.
  3. Easy for maintenance with the lightweight design.
  4. Simple structure and require less consumables.

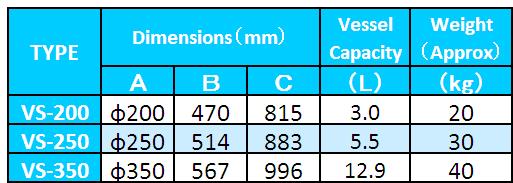

Specifications

Vacuum Conveyor  VS

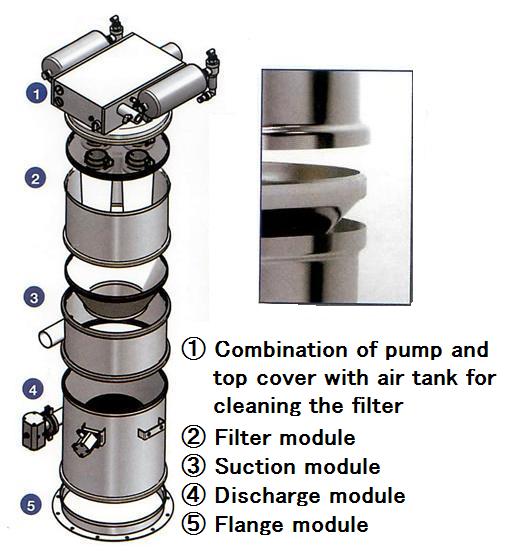

Structure

Vacuum Conveyor  VS

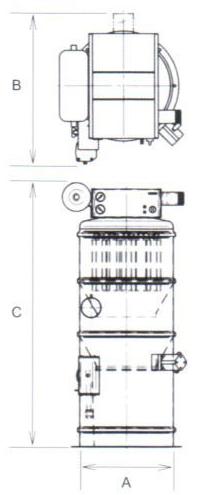

Size

Vacuum Conveyor  VS
