Ribbon Mixer

Feature

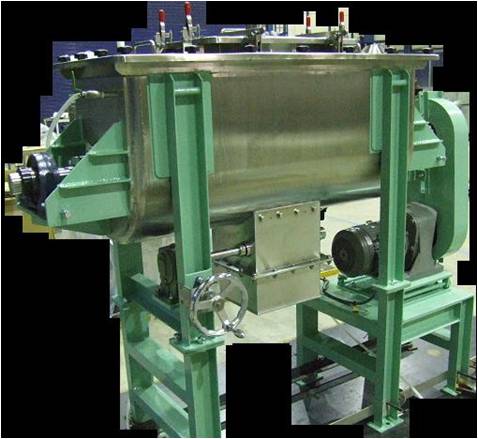

Ribbon Mixer R

Rotating double ribbon type of fins fitted inside of the vessel mix the materials.
The outer fins move the materials toward the central direction and the inner fins move them to outer direction, which causes the convective flow and shearing to the products repeatedly and dispersions are accelerated.

  1. Designed space saving compared with the vessel rotating type of blender.
  2. The mixing vessels are fixed and easy to integrate into the line layout.
  3. Good for safety during the operation as there is no rotating part fitted on outside of the machine.
  4. Both bottom ends of mixing vessel are fabricated in round edge process as the standard specification to avoid residues of the powder. (This is only applied for model R-3400 or smaller).
  5. A mass volume mixer of this type will be available.
  6. By fitting the jacket on the mixing vessel, the cooling or heating operations will be available.

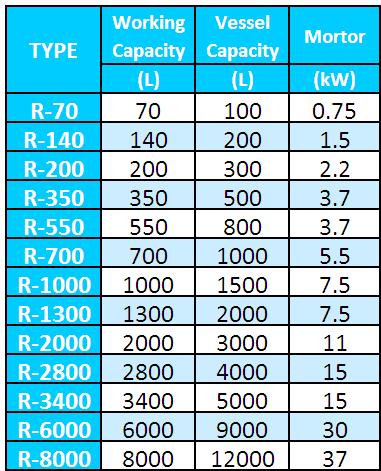

Specifications

Ribbon Mixer R

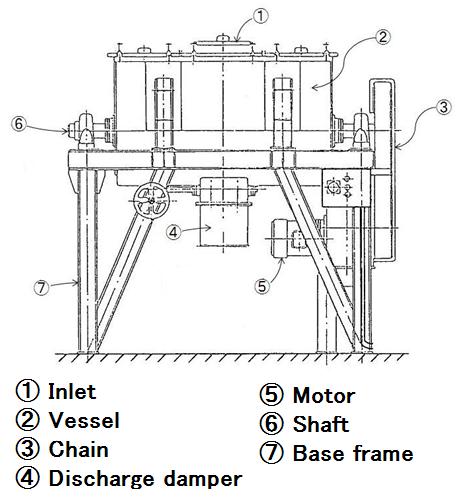

Structure

Ribbon Mixer R

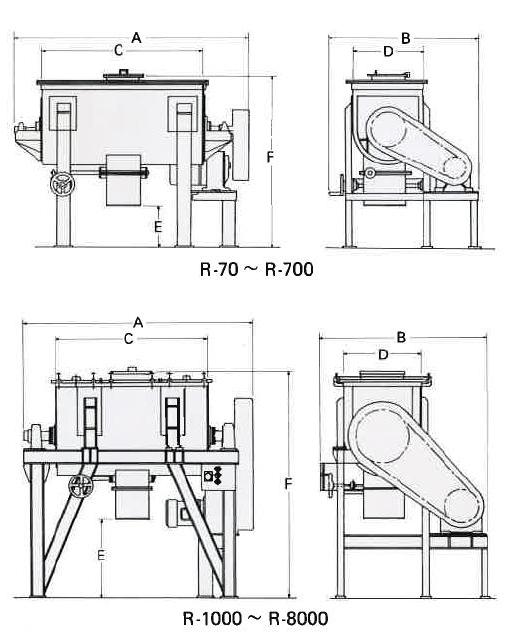

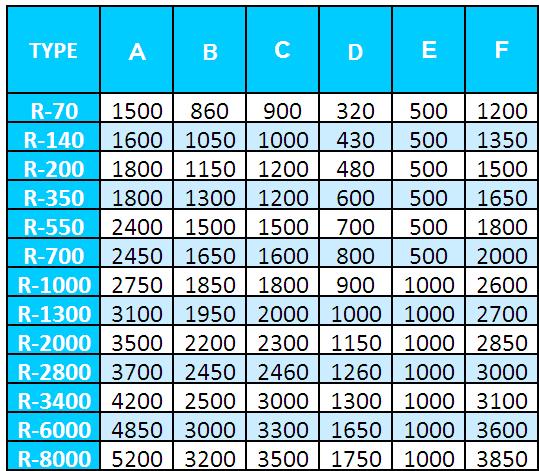

Size

Ribbon Mixer R
