Gyro-Sifter GS-A2、A3

Feature

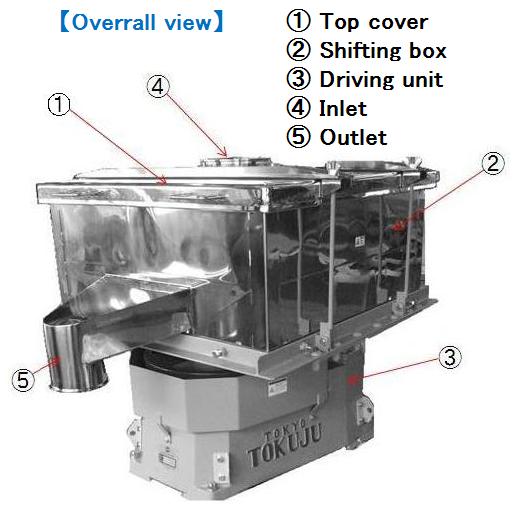

Gyro-Sifter GS-A2、A3

Batch type gyro-sifter suitable for removing the foreign materials contained in the products and also for finish-up.

  1. Quite stable and horizontal rotation movements on the screen surface with an eccentric driving shaft and two driven shafts.
  2. Batch system without product discharge end and it provides the perfect sifting to the products on the screen.
  3. These two units can be scaled up from GS-A1.

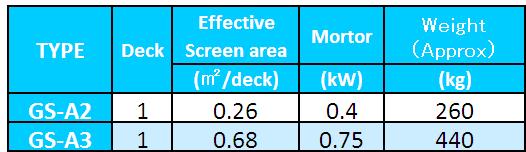

Specifications

Gyro-Sifter GS-A2、A3

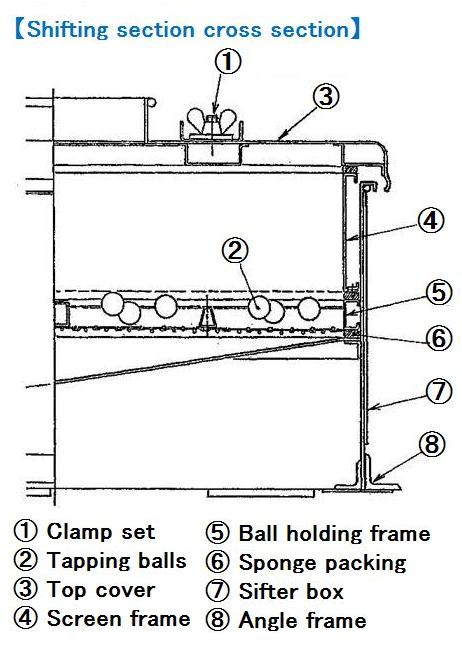

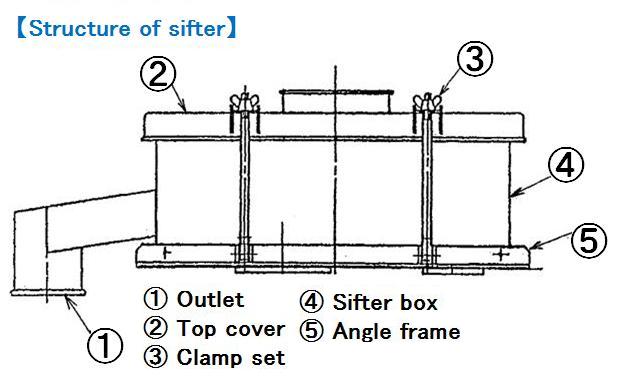

Structure

Gyro-Sifter GS-A2、A3

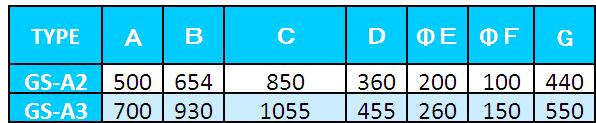

Size

Gyro-Sifter GS-A2、A3
