Gyro-Sifter GS-B4、B5

Feature

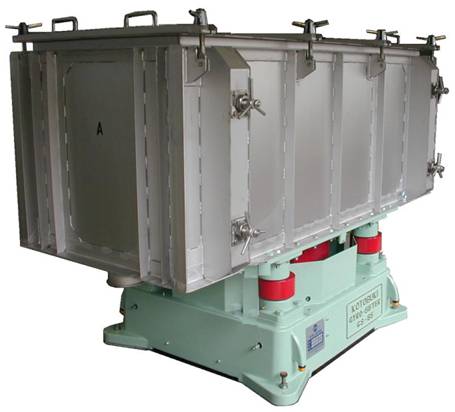

Gyro-Sifter GS-B4、B5

Large size gyro-sifters suitable for removing the foreign materials contained in the product and finish-up on the high volume production. These units provide a quite stable horizontal rotation movement on the very even screen surface driven by an eccentric driving shaft and four driven shafts. This is the continuous type of sifter to achieve more accurate sifting to the products.

  1. Continuous operation and suitable for high volume production.

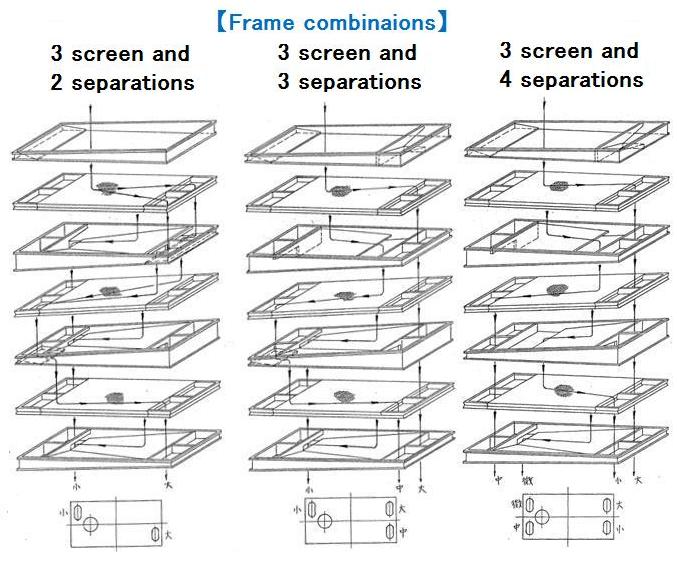

  2. By changing the formation of screen frames, the powders with two or three or four different particle sizes can be shifted.
  3. By changing the trays, orientations at the inlet and discharge ends can be selected.
  4. As a multiple number of trays are firmly fixed inside of the sifting box, the machine can be continuously operated for a long time.

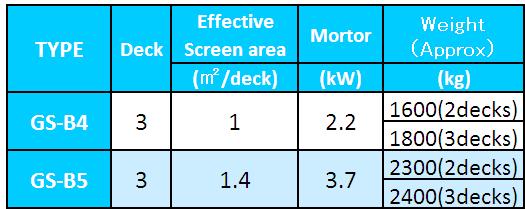

Specifications

Gyro-Sifter GS-B4、B5

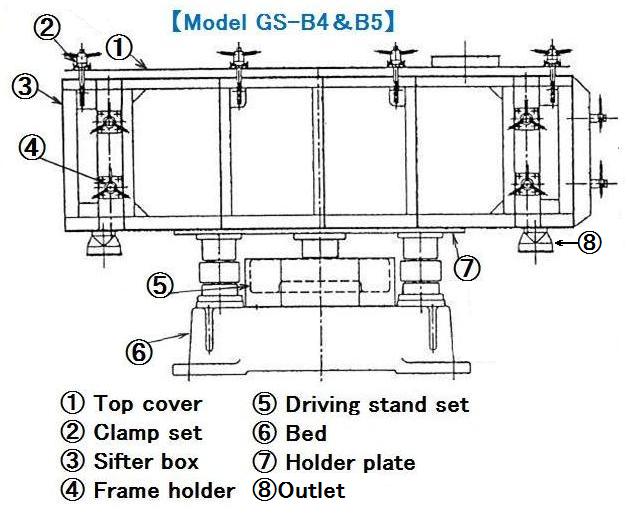

Structure

Gyro-Sifter GS-B4、B5

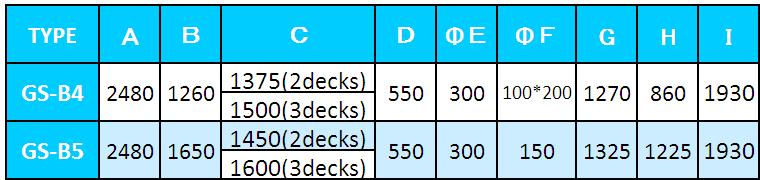

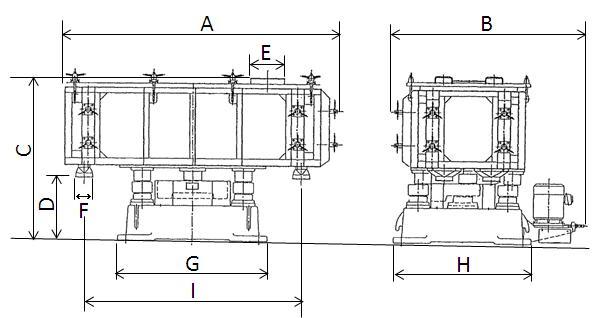

Size

Gyro-Sifter GS-B4、B5
