Gyro-Sifter GS-C5W

Feature

Gyro-Sifter GS-C5W

The largest scale gyro-sifter most suitable for removing the foreign materials and oversized materials contained in the product. The driving system is fitted in the middle with four supporting rods around it. The machine is designed for continuously sifting a large quantity of product by gyration movements evenly on the whole sifting area.

  1. The largest size sifter among the gyro sifter series.
  2. The processing capacity is 1.5 times of GS-B5.
  3. The driving system has been modified to the one-point supporting system from the existing 5-point supporting system. So the centering works are not necessary any longer.

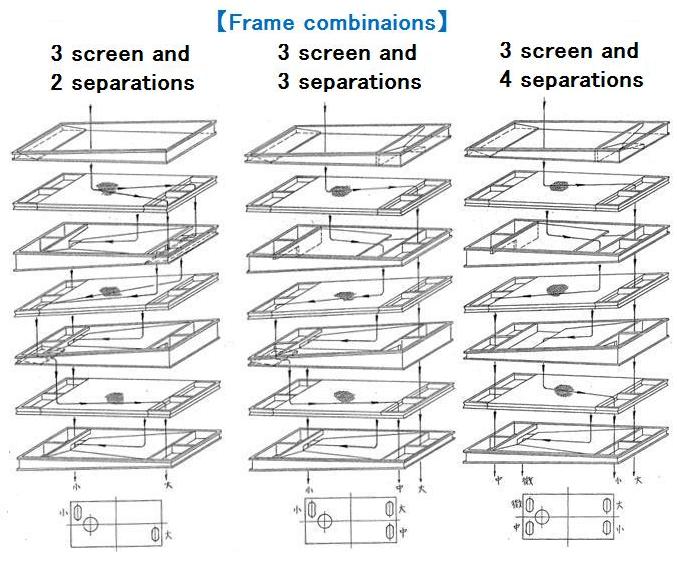

  4. By changing the formation of screen frames, two or three or four different types of sifting can be achieved.
  5. By changing the trays, the orientations at the inlet and discharge end can be selected.

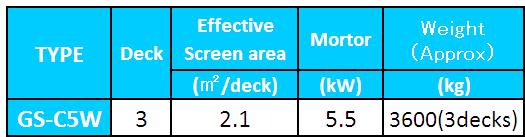

Specifications

Gyro-Sifter GS-C5W

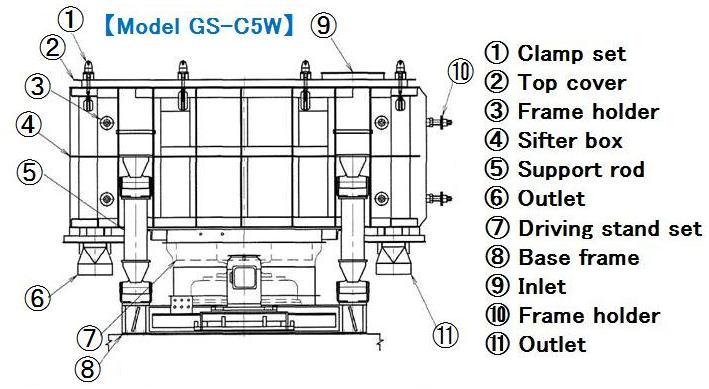

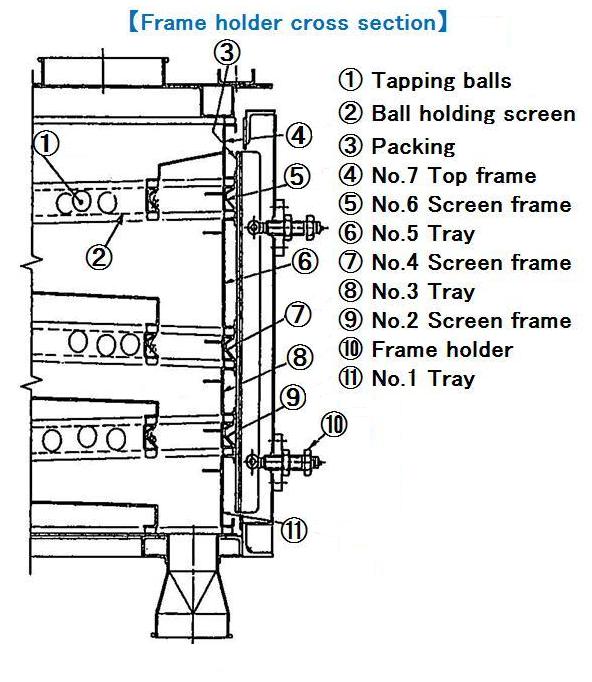

Structure

Gyro-Sifter GS-C5W

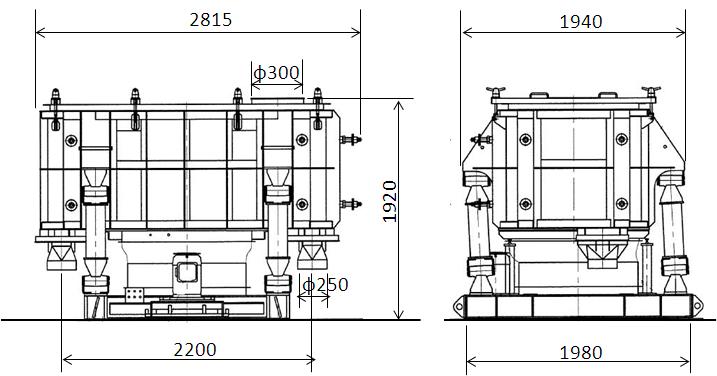

Size

Gyro-Sifter GS-C5W
